Máquina de enchimento automática completa do champô do sabão líquido

Casa / Máquinas de enchimento / Máquina de enchimento automática completa do champô do sabão líquido

Máquina de enchimento automática completa do champô do sabão líquido

Descrição do Produto

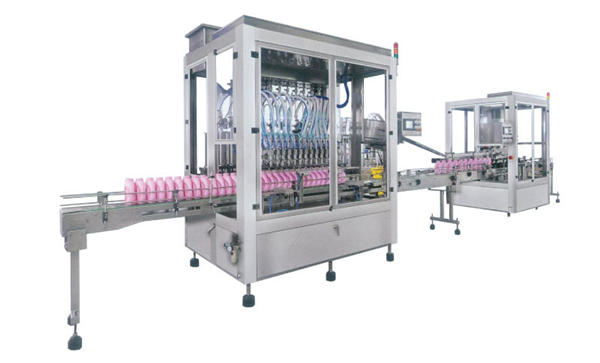

Full automatic liquid soap detergent shampoo filling machine

Multi head piston type full automatic filling machine is a new generation of automatic filling machine, which is a new generation of production experience, which absorbs the advanced technology of the world.
It uses a piston type quantitative principle, electrical and gas pneumatic components selected world-renowned brands, controlled by the PLC with the man-machine interface, novel design, beautiful appearance, with friendly interface, strong adaptability, simple operation, filling volume accurately, maintenance is convenient wait for a characteristic.
Widely used in all kinds of liquids, viscous, paste filling, replacement of filling valve (i.e. a long thick sauce full automatic filling machine), containing granular filling semi liquid, paste, sauces, and other.

Parâmetros técnicos


Modelo
NPACK-8L
Filling capacity
25-250ml,50-500ml,150-1000ml,500-2500ml(different specifications can choose to order)
Velocidade de enchimento
50-80 bottle / min (refers to the 50-500ml range of 6 calculations)
Precisão de enchimento
<±1%
Fonte de energia
380V 50HZ
Pressure(MPa)
0.5-0.7
Outline dimension(mm)
2000*870*1900
Peso (kg)
500

Características


① The world famous brands of electrical and pneumatic components, low failure rate, reliable performance, long service life.
② Using high strength stainless steel frame, easy to disassemble, easy to clean, in accordance with the requirements of GMP
③ The filling quantity and the filling speed adjustment is simple, the operation and display by the touch screen, the appearance is beautiful;
④ There is no bottle filling function, liquid level automatic control feeding;
⑤ Without changing parts, you can quickly adjust the various shapes and sizes of the bottle;
⑥ The filling head is equipped with a special leakage proof device, filling out the drawing, leaking.

Detalhes rápidos


Tipo: Máquina de enchimento

Condição: Nova

Aplicação: Bebida, Produto Químico, Mercadorias, Alimentos, Médico

Packaging Type:Bottles, Capsule

Packaging Material:Glass, Metal, Plastic, Wood

Grau automático: Automático

Tipo acionado: Elétrico

Voltage:220V/380V 50HZ

Power:1kw

Lugar de origem: Shanghai, China (continente)

Marca: NPACK

Dimension(L*W*H):2000*870*1900mm

Peso: 500KG

Certificação: CE ISO

Serviço pós-venda prestado: engenheiros disponíveis para prestar assistência a máquinas no exterior

Product name:Full automatic liquid soap detergent shampoo filling machine

Warranty:One Year

Filling material:liquid soap detergent shampoo

Filling speed:50-80 bottle / min (refers to the 50-500ml range of 6 calculations)

Filling range:25-250ml,50-500ml,150-1000ml,500-2500ml

Filling head:8 Heads

Suitable bottle:Round or square shaped bottle

Material: aço inoxidável

Suitable cap:Plastic screw cap

Function:Bottle Washing Filling Capping
