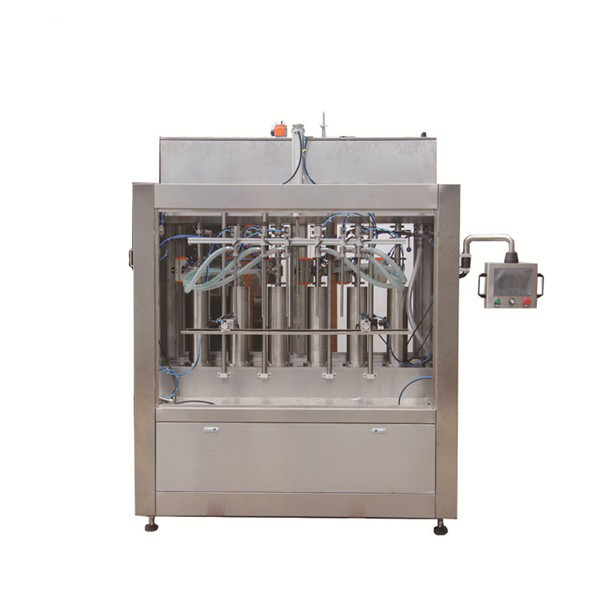

Máquina de enchimento do líquido da lavagem da louça

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

Especificações

---

máquina de enchimento de líquidos para lavar louça
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

Descrição

---

CE da UE
ISO 9001
Atenda aos requisitos das BPF
longlife of service, low mainteinance rate

Função principal

---

A máquina é uma máquina de envase avançada de alta precisão que pode concluir o processo de contagem, envase e nivelamento de garrafas automaticamente.

Características

1. Estrutura compacta, bonita, fácil de operar e altamente automatizada.

2. o contato dos componentes com o material é feito de aço inoxidável, fácil de limpar.

3. O volume de enchimento é controlado com válvulas de filme para garantir a precisão.

4. As válvulas de enchimento de alta velocidade e alta precisão não garantem vazamentos.

5. É equipado com sistema de alimentação de tampa de alta eficiência.

Opção de idioma

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

Principais características:

---

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. Pode memorizar muitos parâmetros, útil para várias especificações alteradas, toda a dosagem de enchimento pode ser ajustada pela tela de toque.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

Parâmetro técnico principal

---

Item	Nome	Parâmetro técnico
01	Dimensão da máquina (L * W * H)	2200mm * 1400mm * 2800mm
02	Peso da máquina	Cerca de 1400Kg
03	Diâmetro interno da abertura do recipiente	≥φ35mm
04	Recipiente adequado	1Liter .2Liter
05	Altura do contêiner	80-350mm
06	Fonte de energia	CA 380V; 50HZ
07	Poder	5Kw
08	Precisão de enchimento	≤ ± 1%
09	Fonte de ar	0.6Mpa ar comprimido estável e limpo
11	Número de bocais de enchimento	13
12	Altura do transportador	900mm ± 50mm
13	capacidade	≤3200bottles / hora (tome a água como teste)
14	Frasco na direção da alimentação	Da esquerda para a direita

Detalhes rápidos

---

Tipo: Máquina de enchimento
Condição: Nova
Aplicação: Químico
Tipo de embalagem: Garrafas
Material de embalagem: Madeira
Grau automático: Automático
Tipo acionado: Pneumático
Tensão: 220 v
Potência: 3KW
Lugar de origem: Shanghai. China (continente)
Marca: NPACK
Dimensão (L * W * H): 2200mm * 1400mm * 2800mm
Peso: 1400
Certificação: CE
Serviço pós-venda prestado: engenheiros disponíveis para prestar assistência a máquinas no exterior
material: SS304
PLC: Panasonic
Tela de toque: Panasonic

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
